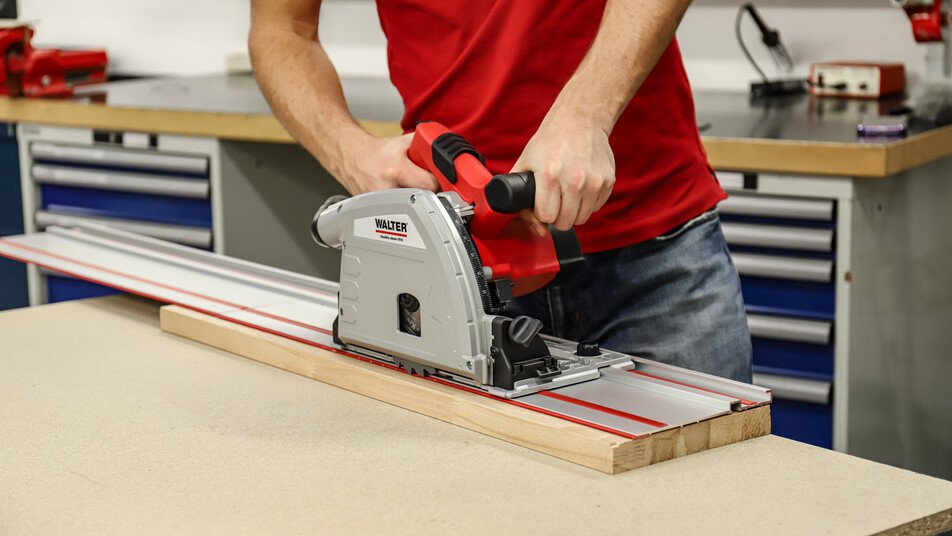

If you are looking for the perfect tool for filigree cuts - you should get the WALTER plunge saw. It is ideal for cuts that need perfection, for example when cutting a kitchen sink or hotplate.
The saw blade and the motor of the WALTER plunge saw can be tilted and lowered so the sawblade plunges into the material - with a cutting depth of up to 56 mm. The mitre angle of up to 45° allows maximum flexibility.

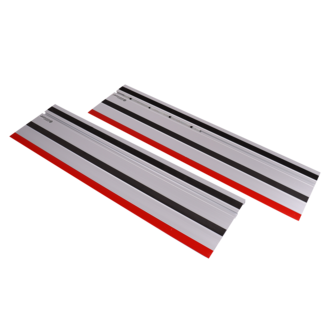

The included guide bars make the WALTER plunge saw complete. The saw glides over the guide bar to smoothly cut the material and ensure a straight cut. The guide bar simultaneously represents the later cutting edge when creating the workpiece - a big advantage!
The saw blade and the motor of the WALTER plunge saw can be tilted and lowered so the sawblade plunges into the material - with a cutting depth of up to 56 mm. The mitre angle of up to 45° allows maximum flexibility.
The included guide bars make the WALTER plunge saw complete. The saw glides over the guide bar to smoothly cut the material and ensure a straight cut. The guide bar simultaneously represents the later cutting edge when creating the workpiece - a big advantage!
- possibility to set the cutting depth from 0 to 56 mm
- The miter angle can be adjusted between 0° and 45° using the scale and miter angle adjustment screw.

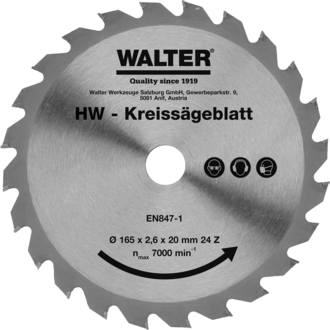

- Including carbide saw blade Ø 165 mm and two-part guide bar (2x 70 cm).
Length:
29 cm
Width:
23 cm
Height:
27 cm
Volume:
0.05 m³
Weight without packaging:
9.2 kg
mains connection:
230 V/50 Hz
rated power:
1200 W
idling speed:
5200 rpm
saw blade diameter:
165 mm
saw blade hole:
Ø 20 mm
miter angle:
0° - 45°
max. depth of cut at 0°:
56 mm
max. cutting depth at 45°:
42 mm
dimensions saw blade:
165x2,6x20
cable length:
3 m
- 1x plunge saw
- 2x guide bars, 70 cm each including connecting material
- 1x saw blade
- 1x hexagon key 3 mm
- 1x hexagon key 4 mm
- 1x hexagon key 5 mm
- 1x user manual
