Product data

  • Product number: 630501B
  • Weight: 4.2 kg
  • Sound power level: L wA 100 dB(A)
  • Sound pressure level: L pA 89 dB(A)
  • Protection Class: II
  • Rated Voltage: 230 V~ / 50 Hz
  • Power Consumption: 900 W
  • No-load Speed: 10800 U/min
  • Cable Length: 3 m
  • Milling Depth: max. 19 mm
  • Spindle Thread: M 10
  • Disc Cutter Bore: 22 mm
  • Disc Cutter Diameter: 100 mm
  • Disc Cutter Thickness: max. 4 mm

Precise grooves, clean joints – for professional wood connections

The WALTER biscuit joiner is the ideal solution for anyone who wants to create precise, clean, and stable joints in wood or panel materials. Whether shadow gaps, miters, or classic biscuit joints – this machine delivers precision and versatility.

Versatile use – for a wide variety of materials

Whether chipboard, hardwood, softwood, plywood, fiberboard, or plastic panels – with the powerful 900W router, you'll achieve precise results on a wide variety of materials. The height-adjustable angle stop and adjustable router angle allow for maximum flexibility, even when working with miters.

Quick and precise – adjustable without tools

The milling depth can be quickly adjusted to the respective dowel size – thanks to the quick milling depth adjustment, it's completely hassle-free. With a maximum milling depth of 19 mm and an idle speed of 10,800 rpm, you can achieve powerful, clean milling results with every application.

Work cleanly, get started right away.

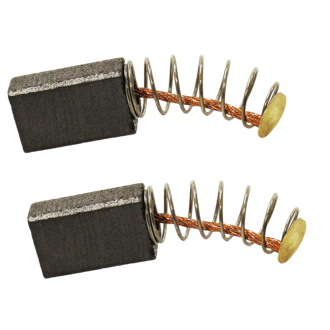

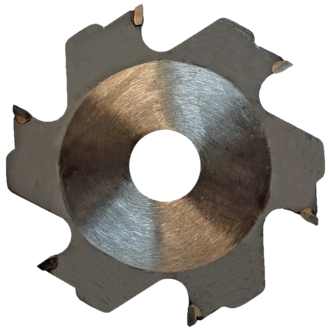

An integrated dust extraction port and the included dust bag ensure a consistently clean workspace. Thanks to the comprehensive accessories, including 60 biscuits in three sizes, replacement carbon brushes, a cutter, and instructions, you can start your project immediately. Ideal for precise wood joints, quick setup, and clean results – the WALTER biscuit joiner is your professional helper for every workshop.

Downloads

Instructions & Documents

630501b-flachduebelfraese-anleitung-de-en-fr-sl-hr
