Inspection Camera
Item No.: 44095704

Inspection Camera

FERREX inspection camera including waterproof, flexible shaft, equipped with dimmable LED lighting for inspection of hard to reach areas.
This item can not be ordered.
The FERREX inspection camera is equipped with a waterproof flexible gooseneck and a mini-color camera with dimmable LED light in the camera head. Ideal for exploring places that are difficult to access and for locating and retrieving small parts. The device has a built-in TFT monitor, which displays the camera image. The LED can be adjusted to compensate for varying light and visibility conditions and makes operation in dark areas possible. In difficult positions it can be helpful to rotate the camera display. The displayed camera image can be rotated and / or mirrored. The magnetic, mirror, the hook or double-hook attachment is useful for locating and retrieving items from places that are difficult to reach.

The voltage is supplied via the included 4 AA-Mignon batteries.
The camera has an internal memory. This allows you to capture and transfer images to your computer. The internal memory of the camera is like a memory card; it does not require any software.

The maximum reach of the inspection camera can be extended using a three metre flexible extension shaft. Connect up to three extension shafts to get a maximum length of 10 metres. Each extension shaft can be purchased under Art. No. 611981.
  • ideal for exploring places that are difficult to access
  • 2.7 " / 6.8 cm TFT Monitor (960 x 740 pixels)
  • 180° rotatable picture and mirror function
  • IP67 waterproof tube & camera head with 6x LED lights and zoom function
  • includes 1m flexible shaft - extendable up to 10m (shaft extensions sold separately)
TFT-Monitor:
6.8 cm/ 2.7" screen size
Resolution of camera head:
640 x 480 pixels
Resolution of TFT monitor:
960 x 240 pixels
Camera illumination:
6 LED white, exempt group (Risk group 0) according to EN 62471
Power source:
6 V (4 x 1,5 V LR6 (AA) batteries)
Length of flexible shaft:
approx. 100 cm
Insulation category - flexible shaft:
IP 67
Minimum bending radius:
30 mm
Diameter of camera head:
Ø 5.2 mm
  • 1x inspection camera
  • 1x USB cable
  • 1x Magnetic attachment
  • 1x Hook attachment
  • 1x Mirror attachment
  • 1x Double hook attachment
  • 1x Flexible shaft
  • 1x Cap nut for fixing the flexible shaft
  • 4x batteries LR6 / AA 1.5 volt
  • 1x Cap for camera head
  • 1x Storage case
  • 1x user manual
  • 1x warranty card
You might need:

Matching accessories

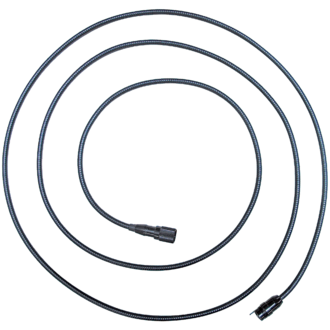

3m flexible extension for Ferrex inspection camera · € 29.90
