Product data

  • Product number: 620174
  • Dimension: L: 40 cm, W: 9.5 cm, H: 30 cm
  • Weight: 5 kg
  • Sound pressure level: LpA 89.6 dB(A)
  • Number of Shots/Impacts: 3900 beats/min
  • Rated Voltage: 230 - 240 V / 50 Hz
  • Power Consumption: 1500 W
  • No-load Speed: 750 rpm
  • Tool Holder: suitable for SDS+ system
  • Cable Length: 3 m
  • Sound Power Level: LwA 100.6 dB(A)
  • Impact Performance: 5 years

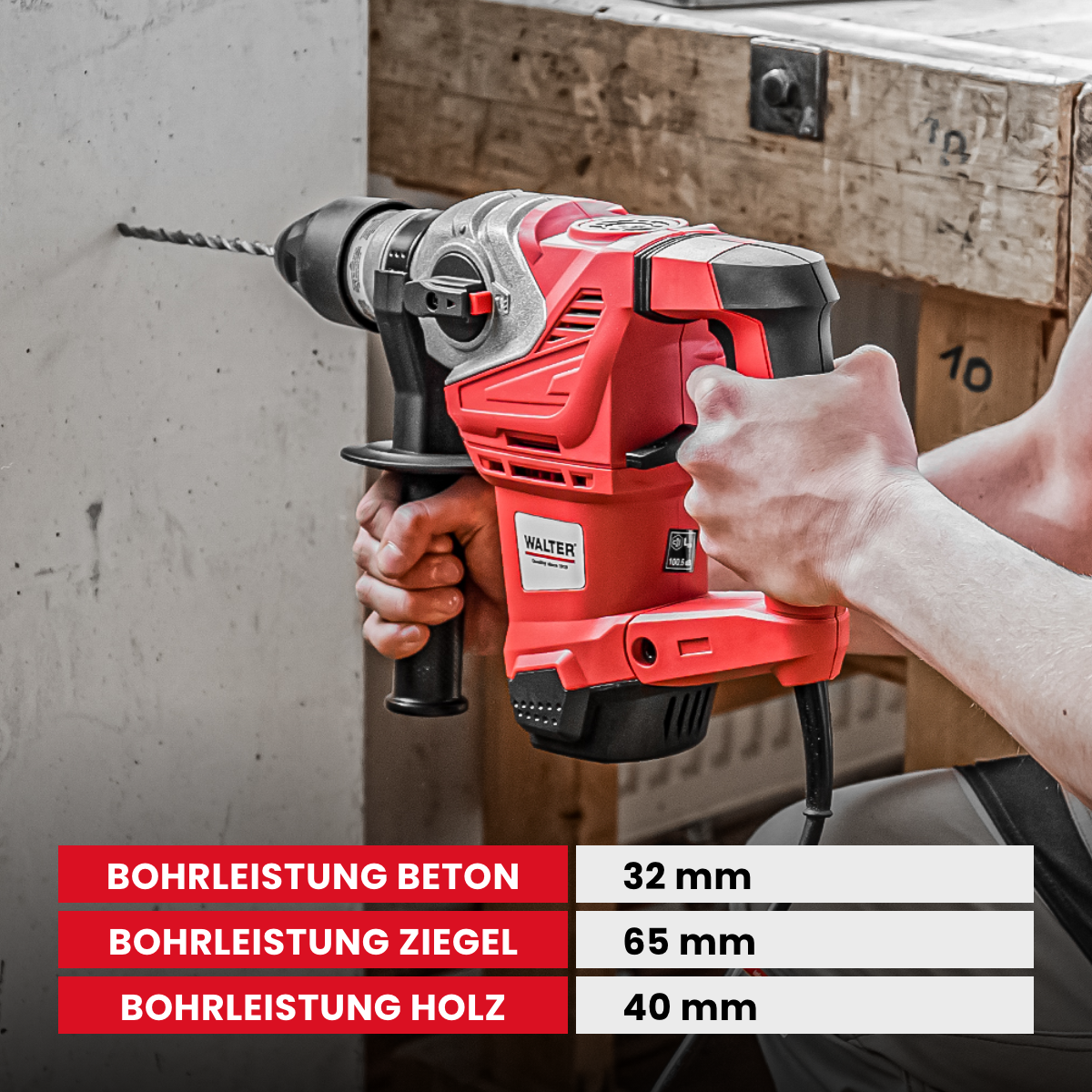

  • Drilling Capacity: Concrete 32 mm, brick 65 mm and wood 40 mm

Versatile multi-purpose drill bit

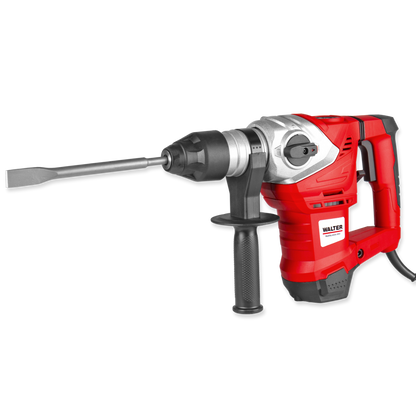

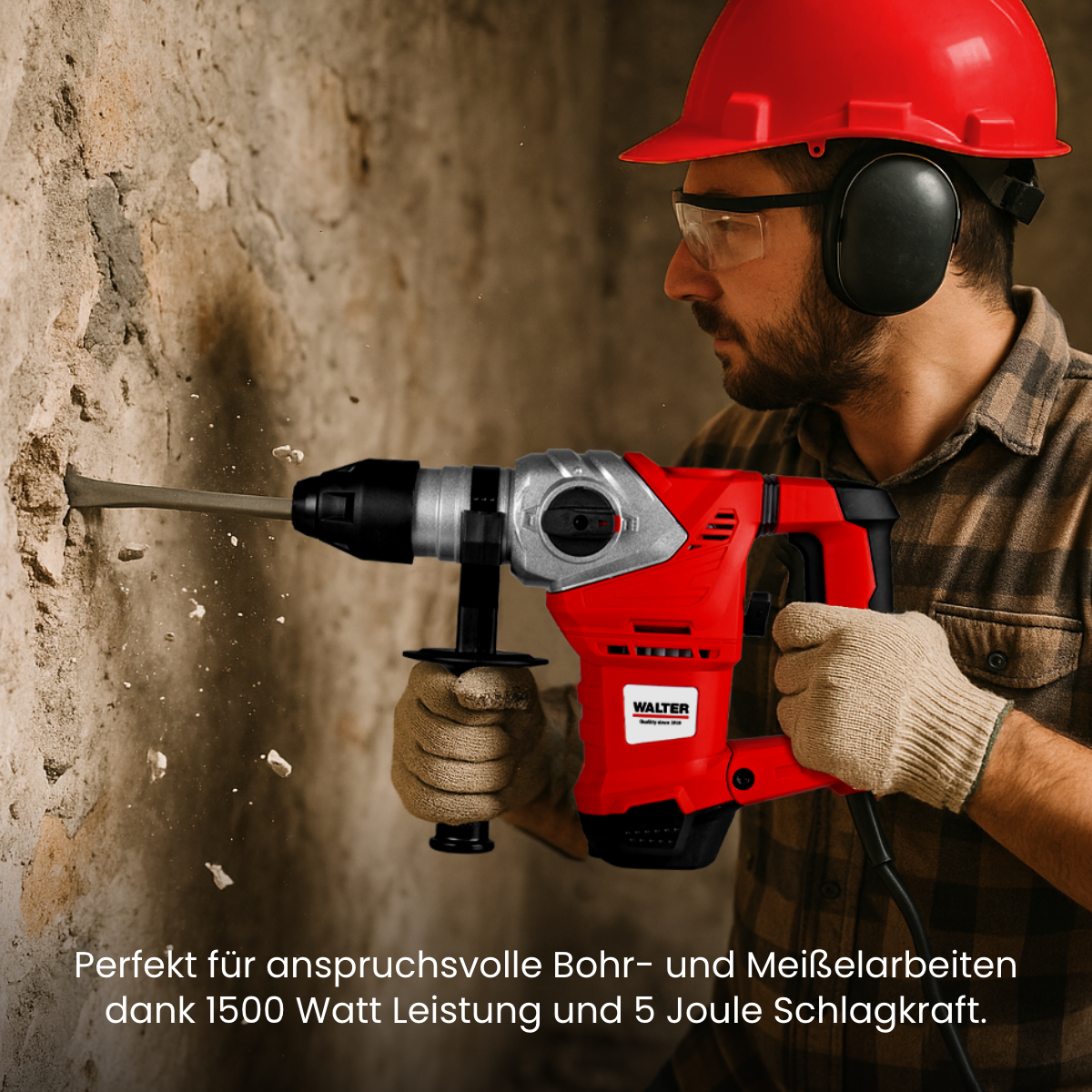

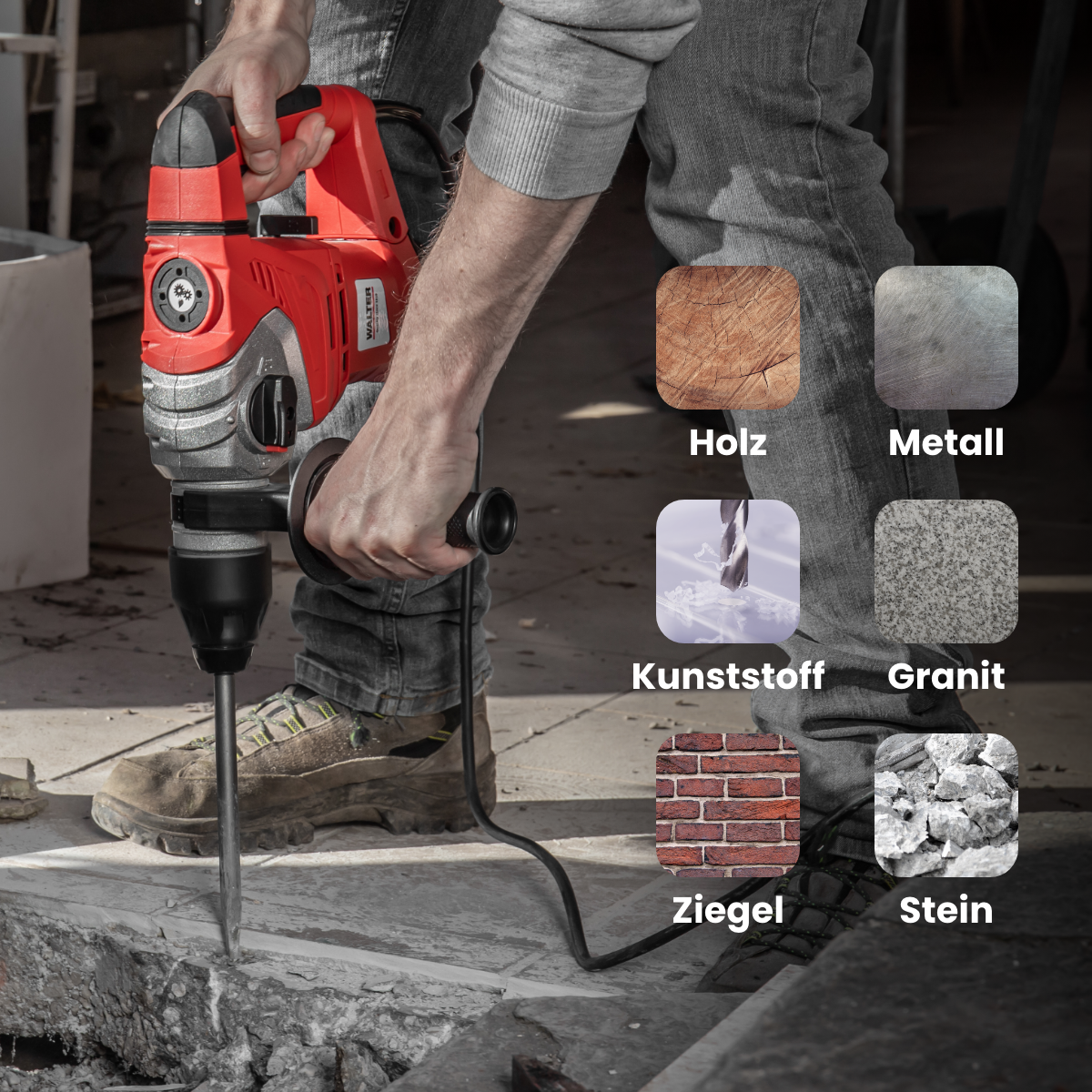

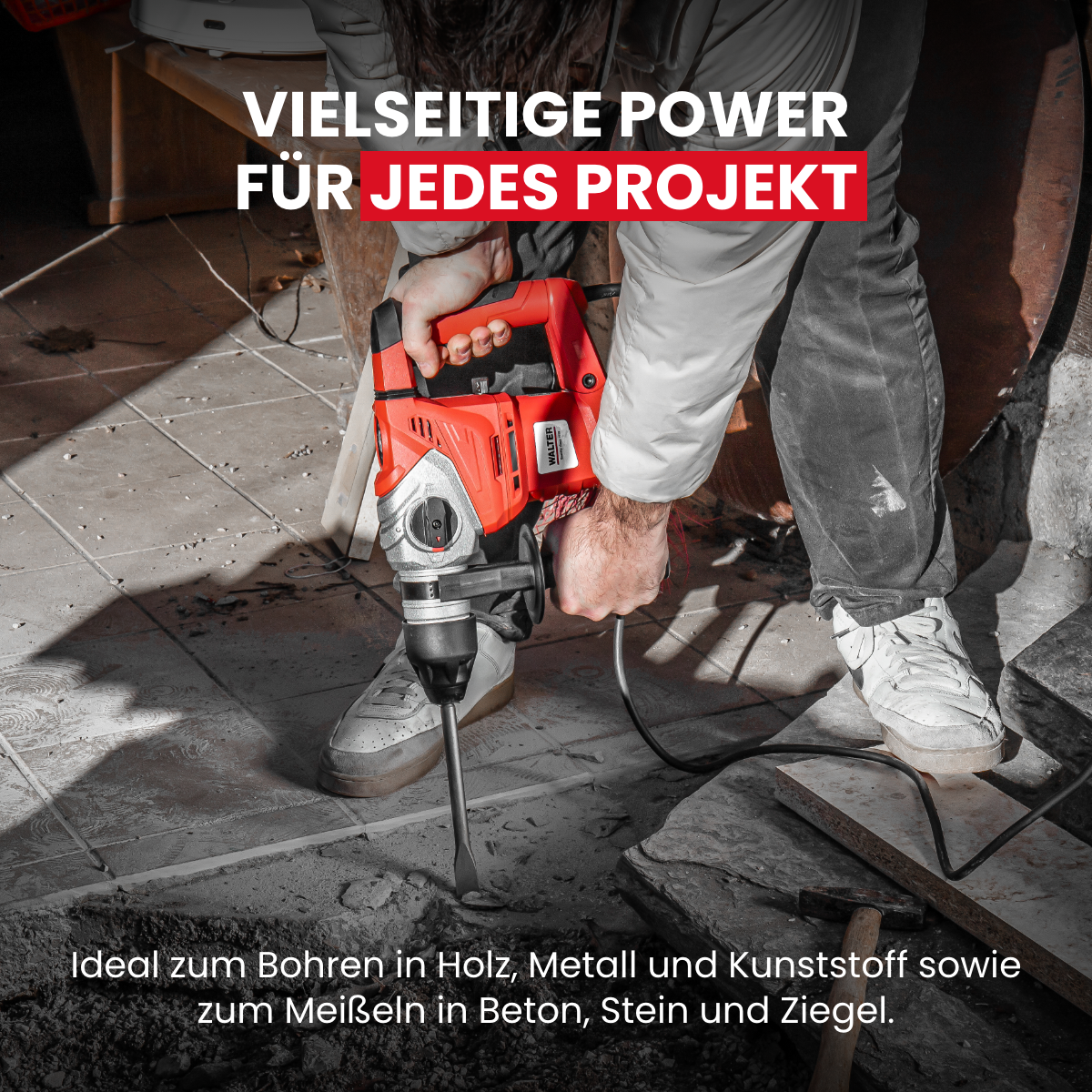

When cordless drills and hammer drills reach their limits, this is where the WALTER rotary hammer comes in. With its powerful 1500 W motor and 5 joules of energy, it's a true all-rounder. This tool allows you to effortlessly drill, hammer drill, and chisel to complete your DIY projects. Whether you need to drill holes in metal, wood, and plastic, or work with robust materials like concrete, stone, granite, and brick – this hammer is ideal. A particularly practical feature: as a combination tool, it also allows for precise chiseling in bricks and similar masonry. Thanks to the SDS+ chuck, the hammer remains versatile and is perfect for any DIY project.

Easily complete difficult projects

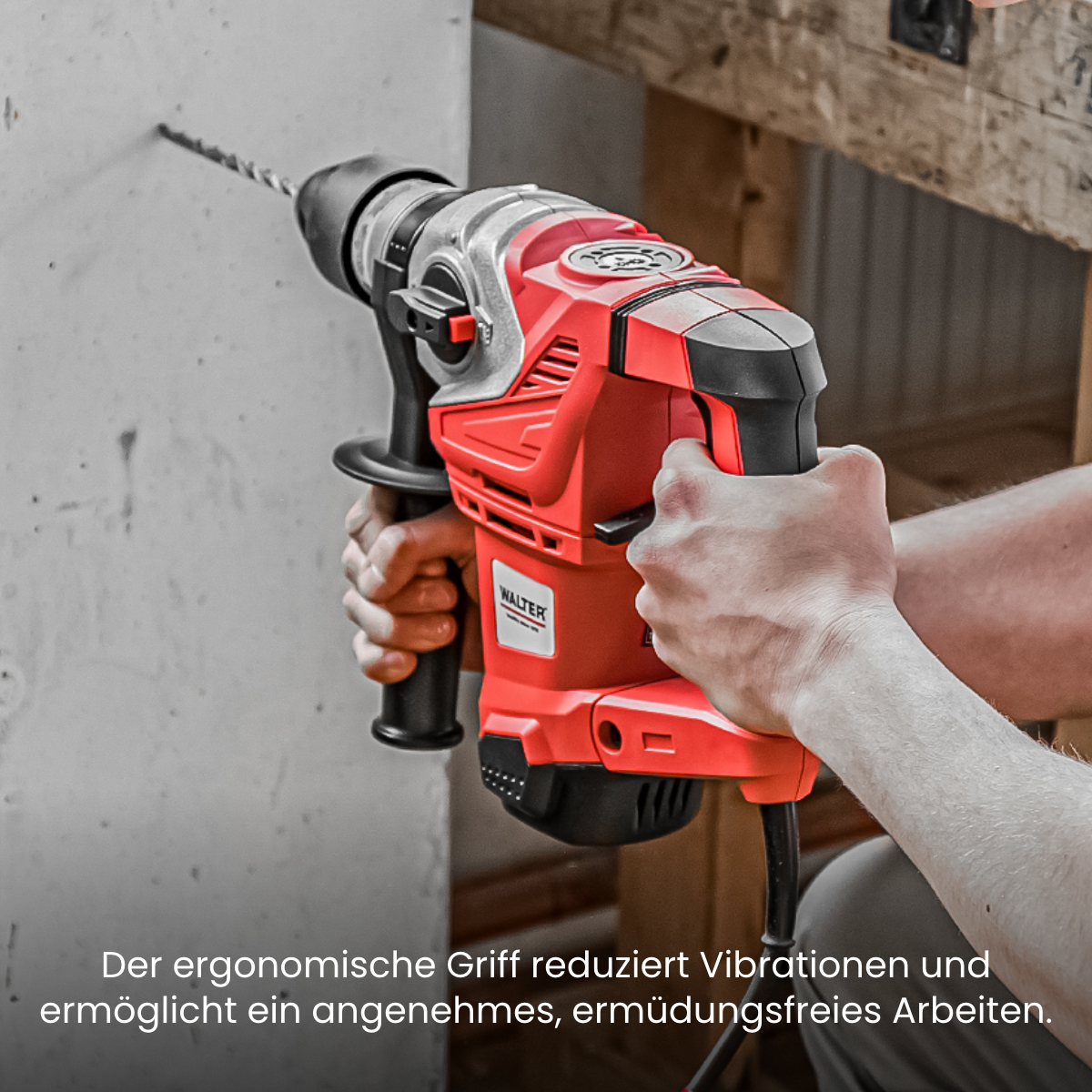

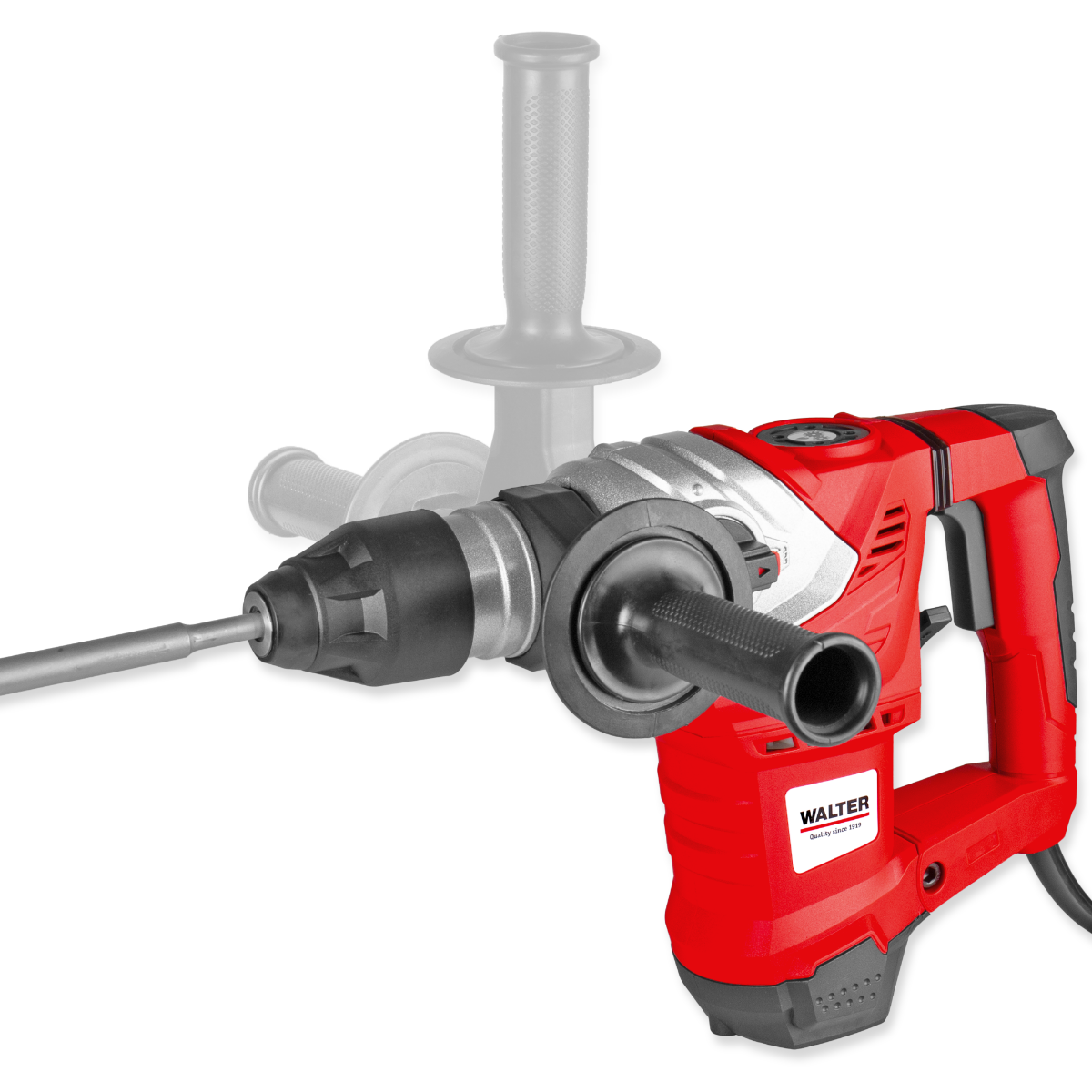

Thanks to its compact design and weight of 8.56 kg, the WALTER 1500 W rotary hammer is extremely versatile and easy to handle. It is perfect for home use – whether you're carrying out small repairs or tackling larger DIY projects. The vibration-dampened handle and an auxiliary handle ensure optimal grip and comfortable working, even during extended use.

Numerous setting options & flexible tool holder

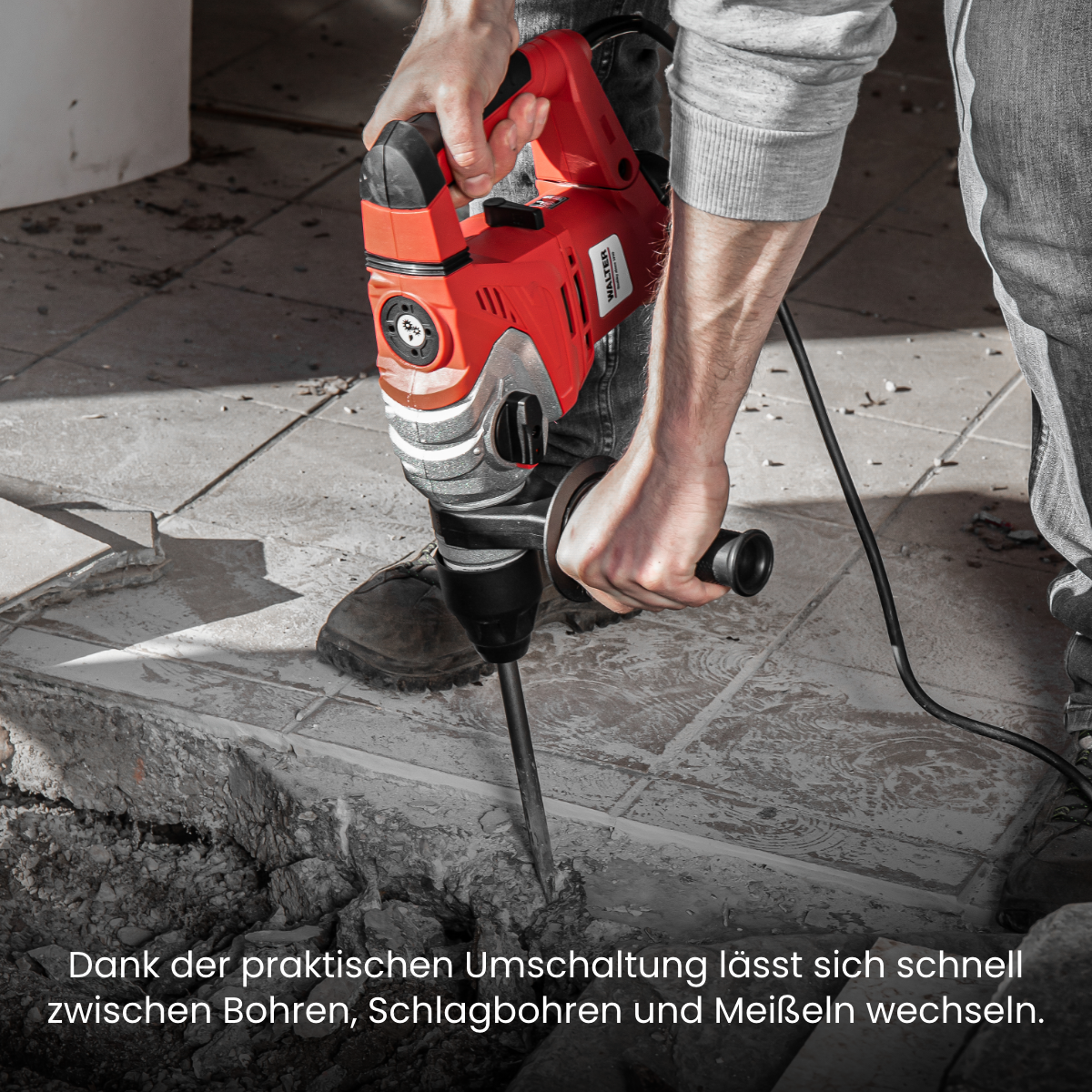

The additional features of the WALTER rotary hammer will delight ambitious DIY enthusiasts. With its easy-to-use settings, you can effortlessly switch between drilling, hammer drilling, and chiseling. The rotary hammer also features a practical SDS+ tool holder, enabling quick and easy tool changes. This allows you to remain flexible and respond to different requirements.

Overview of application areas

This practical combination tool allows you to perform various applications such as drilling, impact drilling, and chiseling. Switching between functions is quick and easy.

  • Drill:Use the appropriate drill bit for your material – e.g., an HSS metal drill bit for metal or a twist drill bit for wood. Push it fully into the tool holder and lock it in place by releasing the locking sleeve.
  • Impact drilling:For drilling into concrete, stone, granite, brick, and similar materials, you need carbide-tipped masonry drill bits. Insert the drill bit as described above.
  • Chisel:Use a flat chisel to remove plaster or metal and a pointed chisel for targeted blows on hard materials such as concrete or masonry.

Fully equipped with extensive accessories

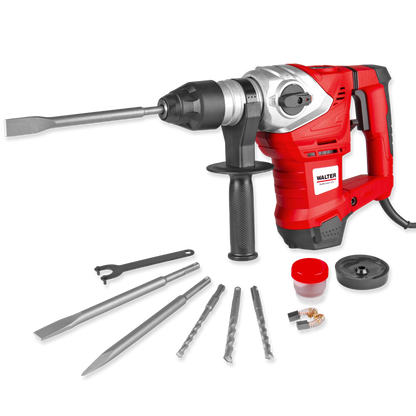

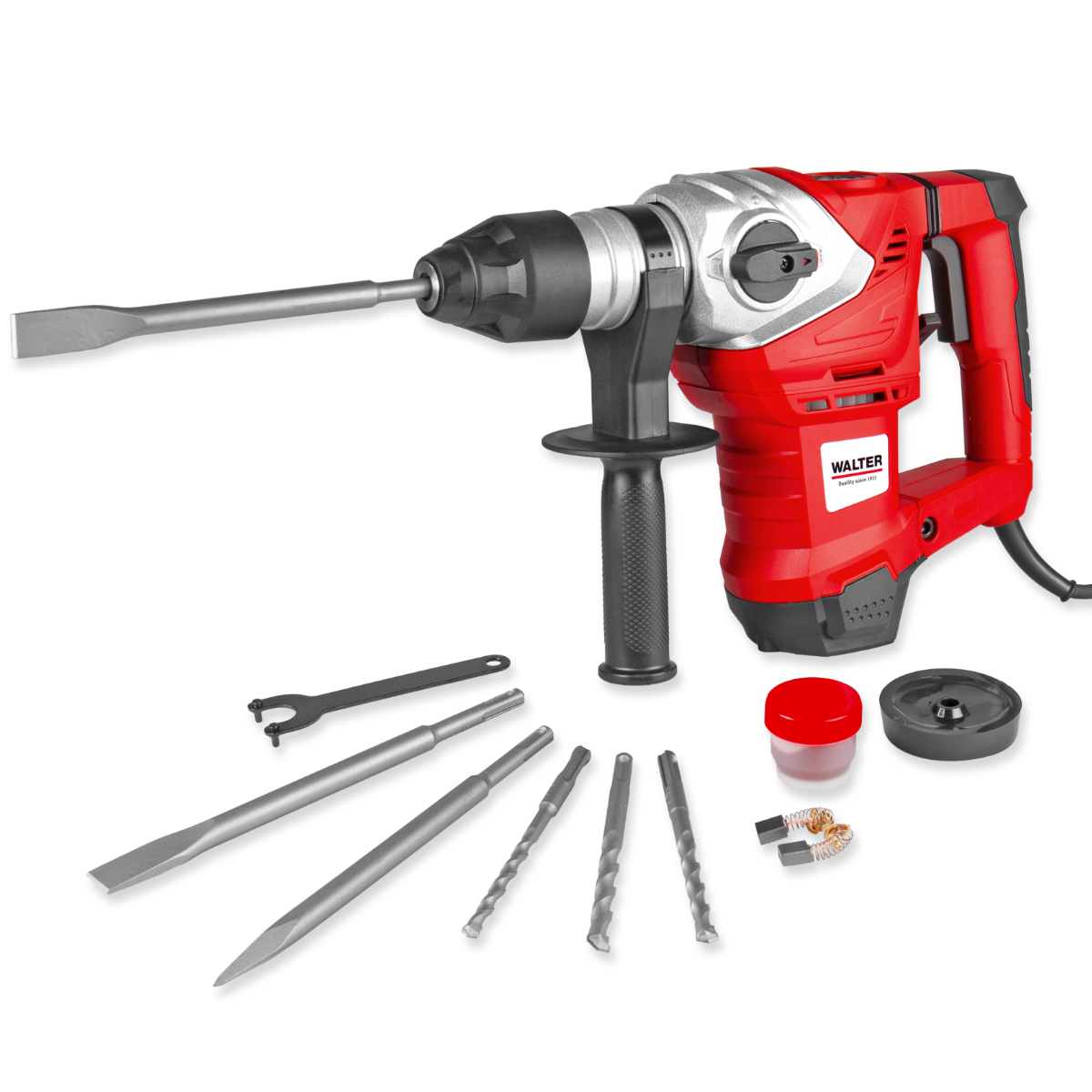

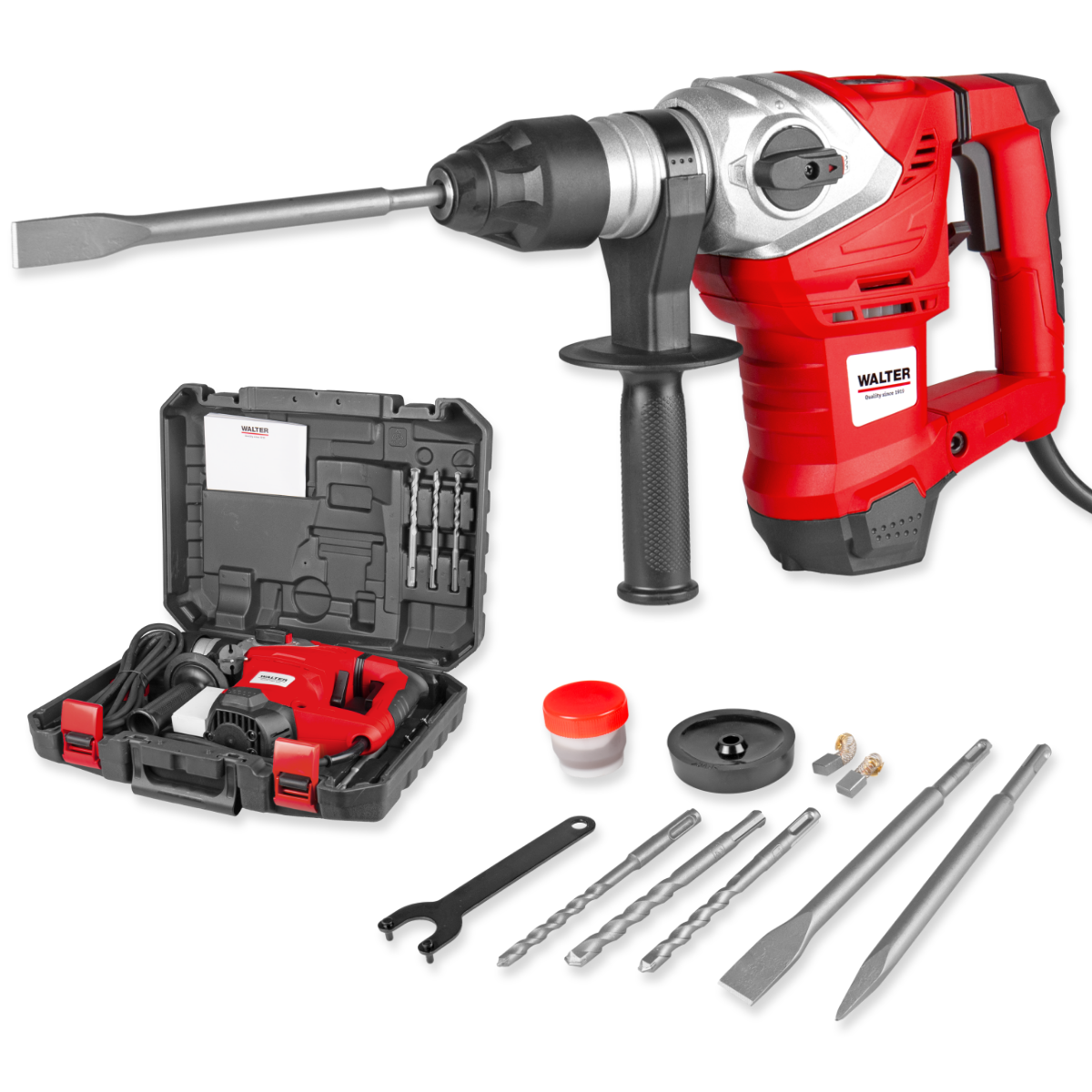

To ensure you get off to the best possible start, the WALTER 1500 W rotary hammer drill comes equipped with the following accessories:

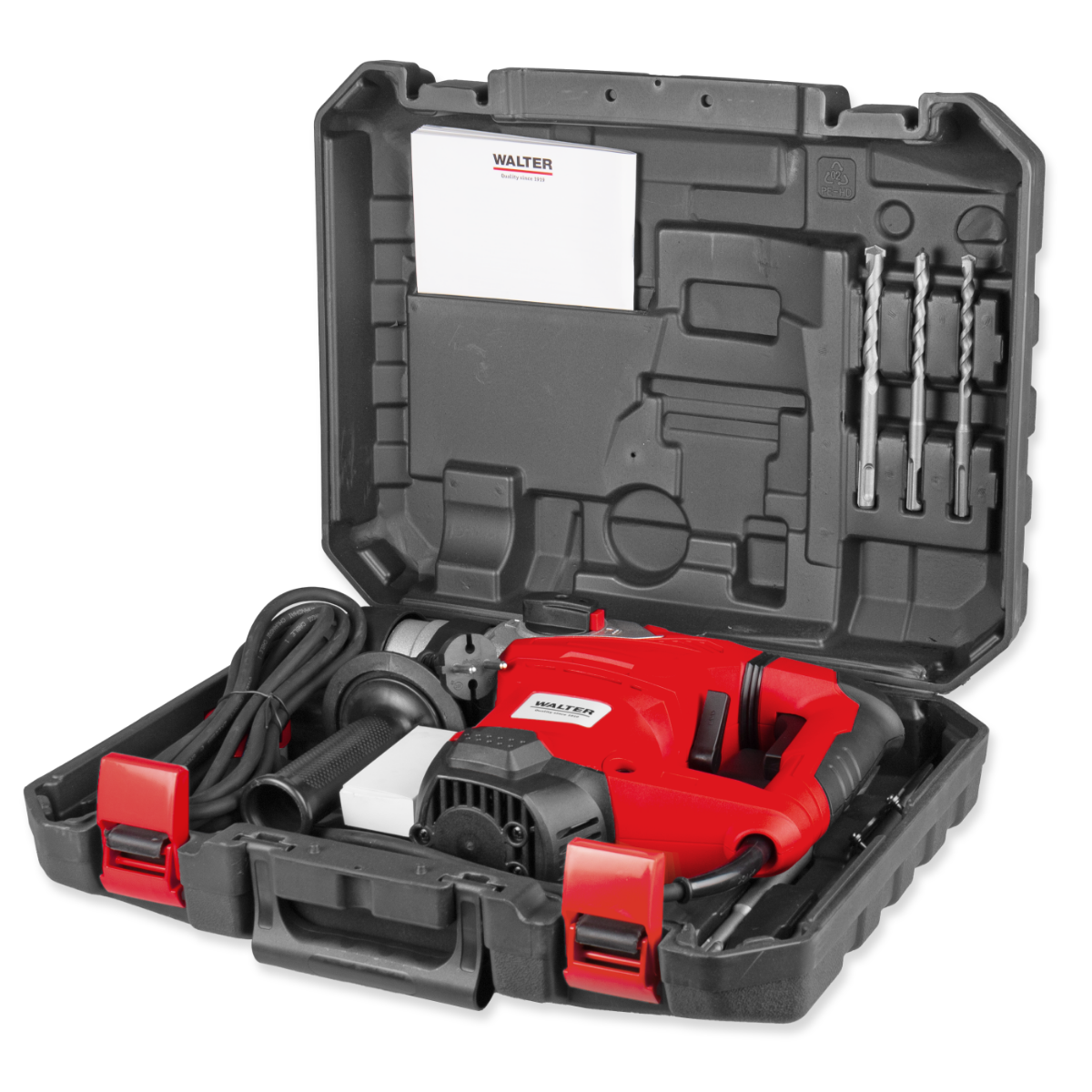

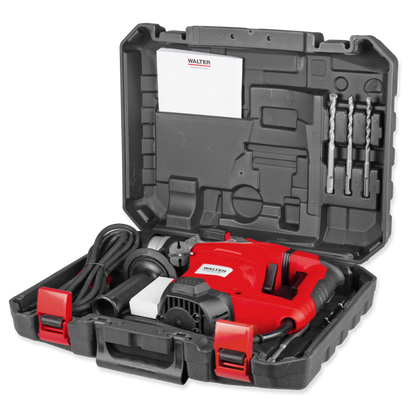

  • 1 x suitcase

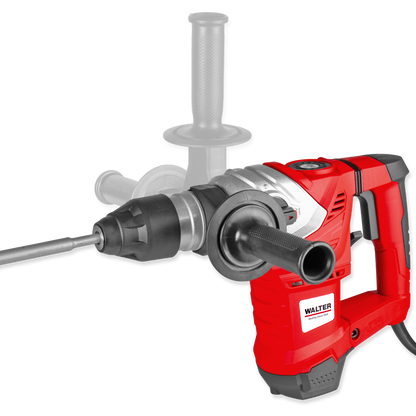

  • 1 x side handle for additional support
  • 1× Dust protection cap for overhead drilling
  • 1× Pointed chisel (Ø 14 x 250 mm) for SDS+ system
  • 1× Flat chisel (14 x 250 mm) for SDS+ system
  • 3× masonry drill bits (Ø 8, 10, 12 x 150 mm) for SDS+ system
  • 1× Machine grease with key for grease cap
  • 1 pair of carbon brushes

FAQ

Frequently asked questions & helpful tips

For which tasks is the WALTER rotary hammer suitable?

With this powerful combination tool, you can easily perform various tasks such as drill, Impact drilling and chisel. Made of – ideal for conversions, renovations or shell construction.

Can the rotary hammer drill be used overhead?

Yes, the device is also suitable for overhead work. A practical attachment is included for this purpose. Dust cap contain.

Which drill bits and chisels are included in the scope of delivery?

You get:

  • flat chisel
  • pointed chisel
  • Stone drill bit in various sizes
How easy is it to change chisels and drill bits?

Switching between tools is very easy via the locking sleeve– fast, tool-free and safe.

Which drill bit should you use for concrete and stone?

For hard materials such as concrete, Stone, granite or brick. You should use it carbide-tipped masonry drill bits.

Which drill bit should you use for wood?

A woodworking tool is suitable spiral drill bit Highly recommended: the Auger bit set from the WALTER online shop.

Which drill bit should you use for metal?

For metalwork you use HSS metal drill bit – also available in the drill bit set in the WALTER online shop.

When do you use pointed chisels and when do you use flat chisels?
  • flat chisel Ideal for chiseling plaster and metal or for marking masonry.
  • pointed chisel Suitable for hard building materials such as concrete and masonry – precise and powerful.



Can SDS+ tools be used with the device?

Yes, the rotary hammer drill is equipped with the SDS+ System compatible – for quick and safe tool changes.

How heavy is the device?

The rotary hammer weighs8.56 kg– robust and powerful for demanding tasks.

Is machine grease required?

Yes, the device requiresMachine grease, which is included in the delivery. You should approximately all50 operating hoursor refill with grease if the impact performance decreases.

Wie lang ist das Anschlusskabel?

Das Kabel ist ca. 3 Meter lang – für guten Bewegungsspielraum auf der Baustelle.

Wie lange gilt die Garantie?

Du bekommst 36 Monate Garantie auf den Bohr- und Meißelhammer.

Downloads

Instructions & Documents

620174-bohr-und-meisselhammer-anleitung-de-en-fr-cz-sl-hr
