Cross line laser with tripod

Name: Cross line laser with tripod
Brand: WALTER
SKU: 612691
Price: 54.90 EUR
Availability: InStock

54,90 €

Tax included.Shipping calculated at checkout.

The WALTER cross line laser with automatic leveling in 6 seconds ensures precise alignment – including tripod (54–158 cm), LED status display and ±0.5 mm/m accuracy for precise construction and interior work.

Product variants

In stock, ready to ship

With you in 1-2 days!

Product data

Product number: 612691
Weight: 1.3 kg
Model: WWS-KLL-R01_WWS-KLS-R01
Dimensions: 67 cm × 48.5 cm × 23 cm
Self-Leveling Range: 3°
Working Range/Area: max. 10 m
Laser Line Accuracy: 0.5 mm/m
Laser Color: Red

Precise alternative to the spirit level

Horizontal and vertical. Accurate, clearly visible cross lines for precise results in construction and installation work. A cross line laser is the best alternative to a spirit level. You can easily project lines onto walls, floors, or ceilings from a distance. This saves time and prevents errors. The WALTER cross line laser is particularly compact and easy to use – ideal for precise leveling work at short distances.

Automatic & manual leveling range

To create a laser line for aligning your construction projects, it usually needs to be horizontal. This requires precise alignment of the construction laser, which is often difficult when done manually.

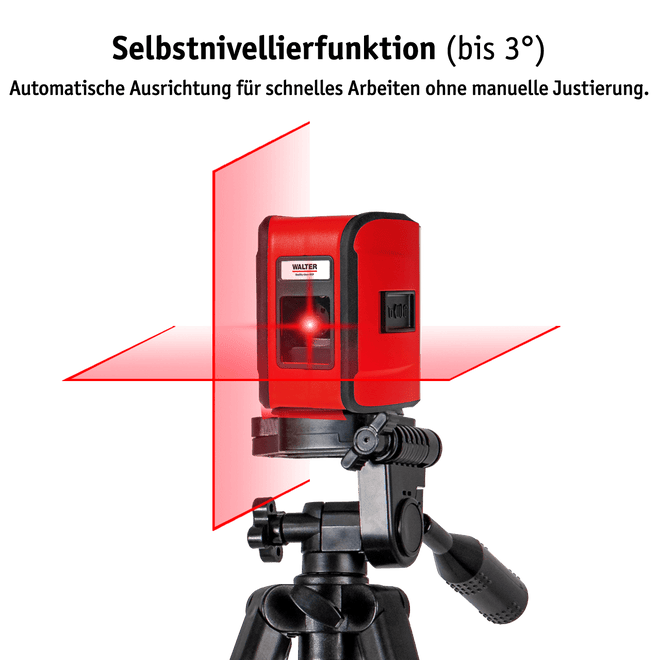

Self-leveling function

This model features a self-leveling function. This means you can roughly position the laser and it will automatically align itself perfectly horizontally – even on slight uneven surfaces of up to ± 3°. The automatic leveling process takes less than six seconds.

Simply adjust the desired working height of the laser.

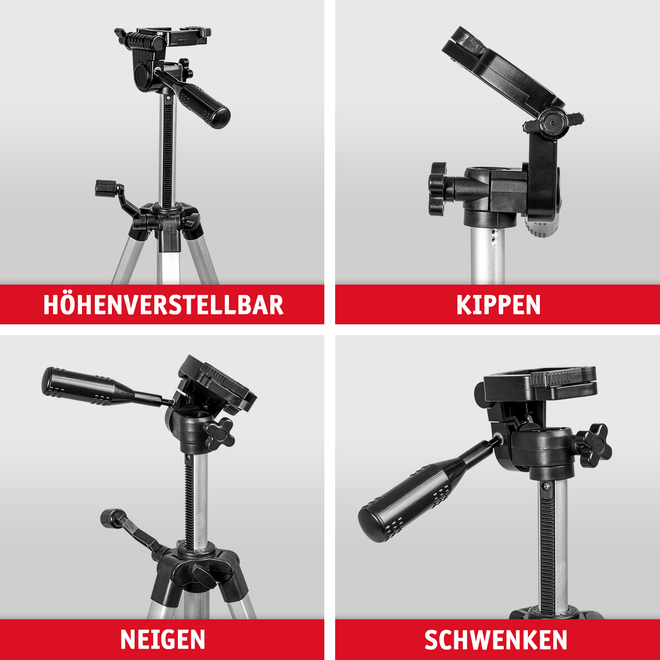

The included tripod can either be hung from the tripod hook or placed on a flat surface. With a height adjustment range of 54 to 158 cm, the desired working height can be easily set. Three adjusting screws and a hand crank also allow for precise fine-tuning – vertically, horizontally, and by rotating and tilting.

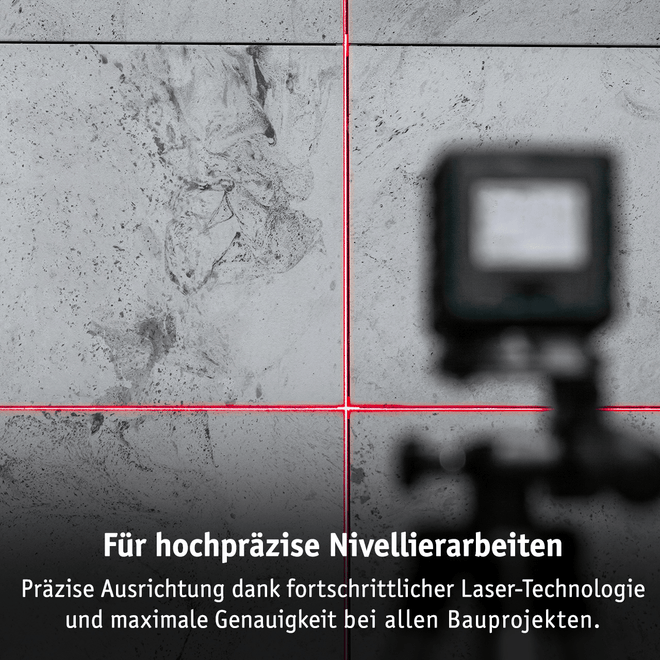

Clearly visible laser lines for maximum accuracy

The bright red laser color ensures clear visibility across the entire working range of up to ten meters. The WALTER cross line laser projects both horizontal and vertical laser lines with an accuracy of ± 0.5 mm/m.

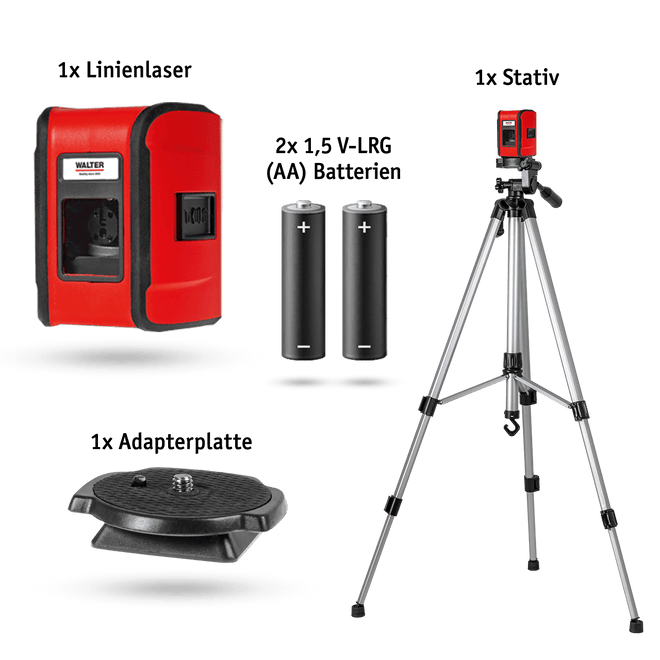

Line laser with accessories

The following accessories are included in the delivery:

1× height-adjustable tripod (54–158 cm)
1× Adapter plate for laser
2 x 1.5 V LRG (AA) batteries

FAQ

Frequently asked questions & helpful tips

For which tasks is the WALTER cross line laser suitable?

The WALTER cross line laser is ideal for precise leveling work over short distances – e.g. when installing shelves, pictures or tiles.

What laser color is projected?

The laser projects clearly visible red lines.

What is the maximum permissible distance to the wall?

The maximum working range is 10 meters.

What height can the tripod be adjusted to?

The tripod is height-adjustable between 54 cm and 158 cm – for flexible applications.

How long does automatic leveling take?

The self-leveling process takes less than six seconds.

How accurate are the laser lines?

The laser line accuracy is 0.5 mm per meter.

How accurate is the automatic leveling?

The leveling accuracy is ± 3°.

What type of batteries does the laser require?

It uses two AA batteries – these are included in the scope of delivery.

How much does the device weigh?

The cross line laser weighs 0.97 kg.

How long is the warranty valid for?

You receive a 36-month warranty on the device.

Downloads

Instructions & Documents

612691-kreuzlinienlaser-anleitung-de-en-fr-cz-sl-hr

PDF Download
